Power Windows do not Operate at All [08/2017 - ]: Wiring Diagram

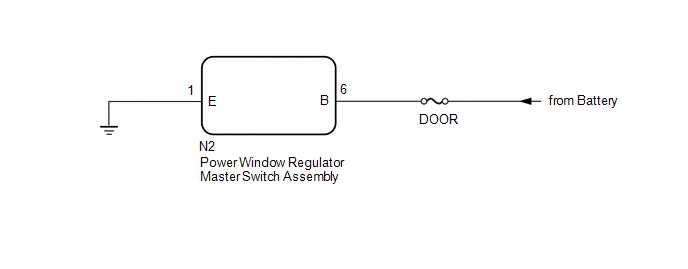

Fig 1: Master Switch Wiring Diagram
GTY773276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
