Windows
>>
Power Window Control System (W/O Jam Protection Function) - Diagnostics & Symptom Tests
>>
POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function)
>>
Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

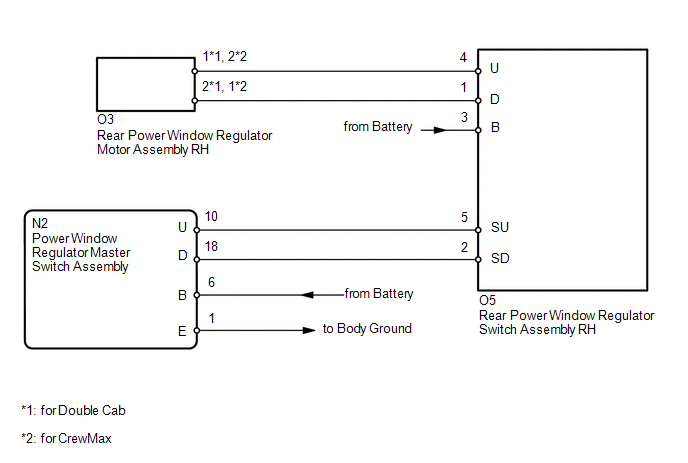

Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - ]: Wiring Diagram
Fig 1: Rear Power Window RH - Rear Power Window Switch RH Connector End View
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
