Installation [08/2015 - ]: Procedure
- INSTALL FRONT SKID CONTROL SENSOR CLAMP LH
- INSTALL FRONT SPEED SENSOR LH

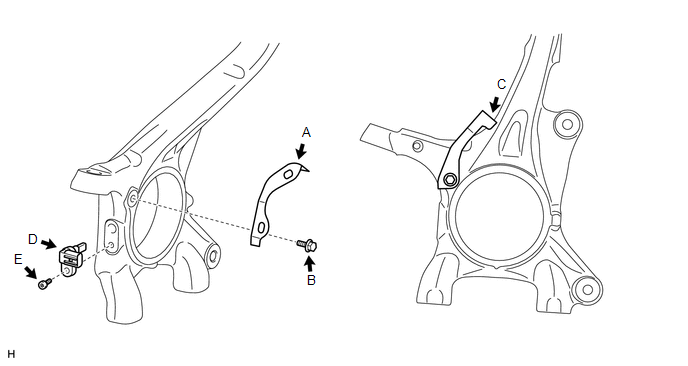

- Install the speed sensor (labeled D) with the hexagon socket head cap bolt (labeled E).
Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
NOTE:- Make sure there are no pieces of iron or other foreign matter attached to the sensor tip part.
- While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
- After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
- Make sure there is no foreign matter attached to the magnetic rotor.
- Install the speed sensor (labeled D) with the hexagon socket head cap bolt (labeled E).
- INSTALL FRONT SKID CONTROL SENSOR WIRE LH

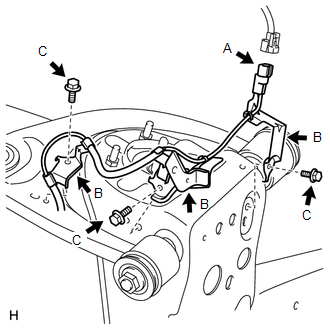

- Connect the connector (labeled A).
- Install the 3 harness clamps (labeled B) with the 3 bolts (labeled C).
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:- When installing the clamps, do not twist the wire harness.
- For clamps with rotation stoppers, make sure the rotation stopper touches the installation position.
- Install the harness clamp with the bolt (labeled D).
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:- When installing the clamp, do not twist the wire harness.
- Make sure the clamp's rotation stopper touches the installation position.

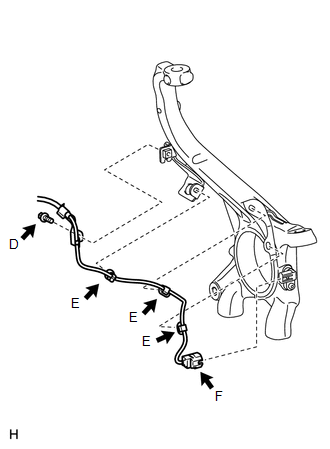

- Attach the 3 clips (labeled E).NOTE:
- When installing the clips, do not twist the wire harness.
- When installing the clips, securely insert them as shown in the illustration.
- Connect the speed sensor connector (labeled F).NOTE:
Securely connect the connector.
- Connect the connector (labeled A).
- INSTALL FRONT SKID CONTROL SENSOR CLAMP RH
- INSTALL FRONT SPEED SENSOR RH

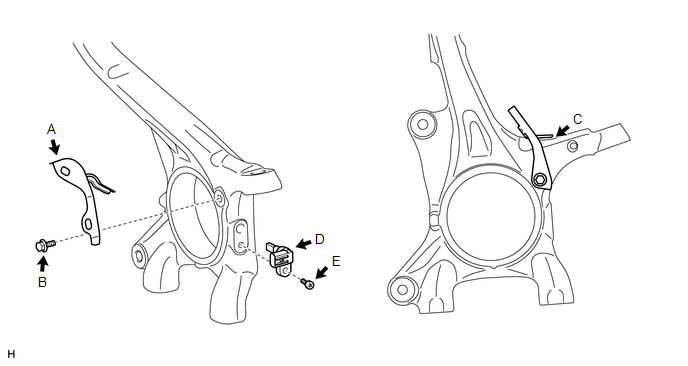

- Install the speed sensor (labeled D) with the hexagon socket head cap bolt (labeled E).
Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
NOTE:- Make sure there are no pieces of iron or other foreign matter attached to the sensor tip part.
- While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
- After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
- Make sure there is no foreign matter attached to the magnetic rotor.
- Install the speed sensor (labeled D) with the hexagon socket head cap bolt (labeled E).
- INSTALL FRONT SKID CONTROL SENSOR WIRE RH

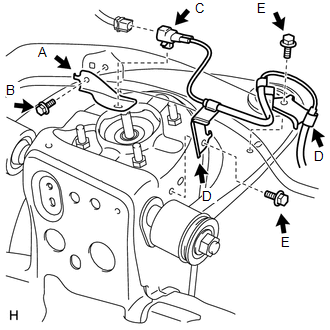

- Install the skid control sensor clamp (labeled A) with the bolt (labeled B).
for Bolt B
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the connector (labeled C) with connect the connector (labeled C).
- Install the 2 harness clamps (labeled D) with the 2 bolts (labeled E).
for Bolt E
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:- When installing the clamps, do not twist the wire harness.
- For clamps with rotation stoppers, make sure the rotation stopper touches the installation position.
- Install the harness clamp with the bolt (labeled E).
Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:- When installing the clamp, do not twist the wire harness.
- Make sure the clamp's rotation stopper touches the installation position.

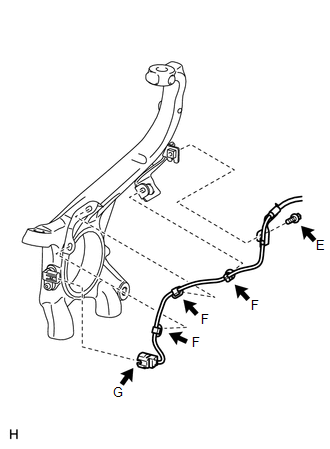

- Attach the 3 clips (labeled F).NOTE:
- When installing the clips, do not twist the wire harness.
- When installing the clips, securely insert them as shown in the illustration.
- Connect the speed sensor connector (labeled G).NOTE:
Securely connect the connector.
- Install the skid control sensor clamp (labeled A) with the bolt (labeled B).
- INSTALL FRONT WHEEL
for Aluminum Wheel
Torque: 131 N*m (1336 kgf*cm, 97 ft.*lbf)
for Steel Wheel
Torque: 209 N*m (2131 kgf*cm, 154 ft.*lbf)
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- CHECK SPEED SENSOR SIGNAL
- Check the speed sensor signal (Refer to TEST MODE PROCEDURE [08/2015 - 08/2017] , or refer to TEST MODE PROCEDURE [08/2017 - ] ).
