Installation [08/2015 - 08/2017]: Procedure

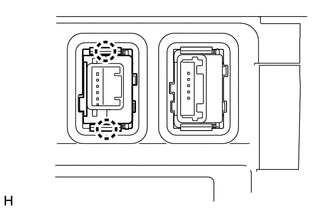

INSTALL VSC OFF SWITCH

Attach the 2 claws to install the VSC OFF switch into the No. 2 switch hole base.

INSTALL NO. 2 SWITCH HOLE BASE
Refer to PROCEDURE - Step 25
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 30
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 27
INSTALL FRONT DOOR SCUFF PLATE LH
1. for Double Cab:
  (Refer to PROCEDURE - Step 31 )
2. for CrewMax:
  (Refer to PROCEDURE - Step 32 )
3. for Regular Cab:
  (Refer to PROCEDURE - Step 21 )
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 36
