Components [08/2015 - 08/2017]

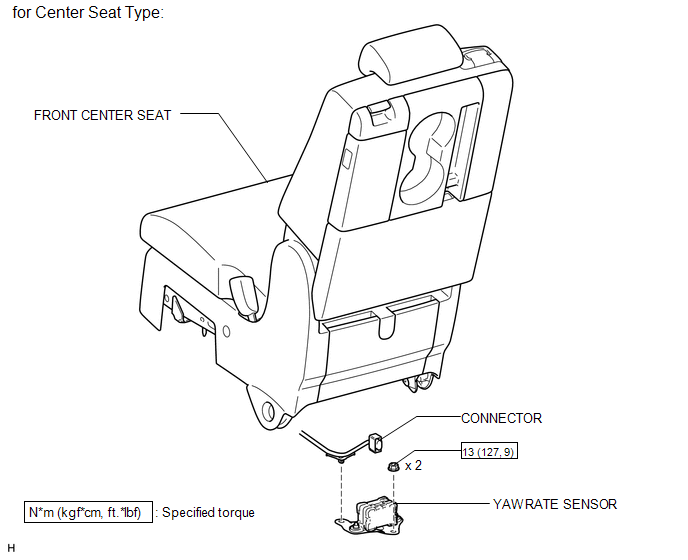

Fig 1: Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (Center Seat Type)
GTY578549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

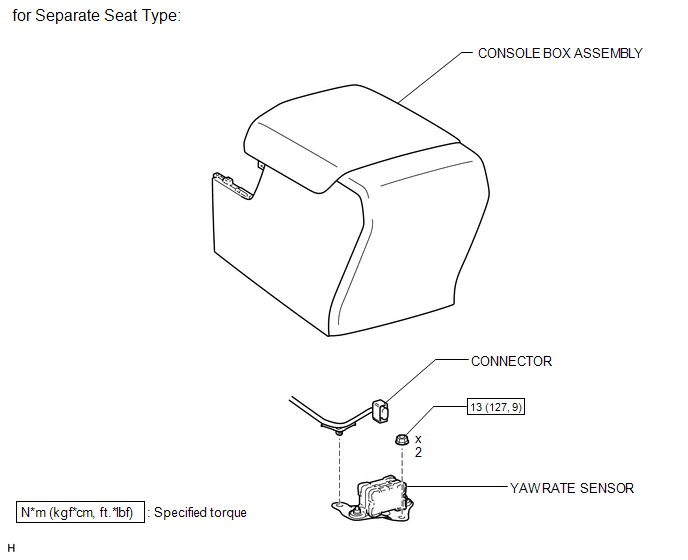

Fig 2: Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications (Separate Seat Type)
GTY583493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
