DTC B2274: ACC Monitor Malfunction [08/2019 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2021 Toyota Tundra and 2020 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

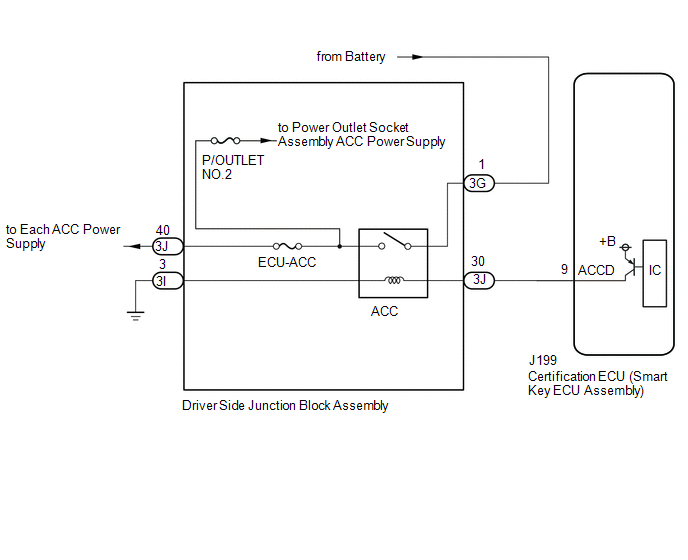

Fig 1: Certification ECU - Driver Side Junction Block Wiring Diagram
GTY868673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
