Power Source Mode does not Change to ON (IG) [08/2019 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key, Power Source Control / Trouble Codes.
5. Check for DTCs.

   Refer to DTC CHECK / CLEAR [08/2019 - ]

   Result

   Result	Proceed to
   DTCs are not output	A
   Smart key system (for Start Function) DTCs are output	B

Result:

B

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2019 - ]

Result:

A

See step  2

1. Measure the voltage according to the value(s) in the table below.

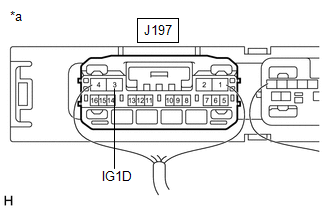

   Fig 1: Certification ECU Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Certification ECU (Smart Key ECU Assembly))

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   J197-3 (IG1D) - Body ground	Engine switch on (ACC) → Engine switch on (IG)	1 V or less → 9 V or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2019 - ]

Result:

OK

See step  3

1. Disconnect the J197 certification ECU (smart key ECU assembly) connector.
2. Disconnect the 3G, 3I and 3J driver side junction block assembly connectors.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J197-3 (IG1D) - 3J-17	Always	Below 1 Ω
   3I-3 - Body ground	Always	Below 1 Ω
   J197-3 (IG1D) or 3J-17 - Other terminals and body ground	Always	10 kΩ or higher

4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   3G-1 - Body ground	Always	11 to 14 V

5. Reconnect the J197 certification ECU (smart key ECU assembly) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Fig 2: Driver Side Junction Block Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the driver side junction block assembly.

   Refer to REMOVAL [08/2019 - ]

2. Reconnect the driver side junction block assembly connectors.
3. Connect a positive (+) lead from the battery to terminal 3J-17.
4. Connect a negative (-) lead from the battery to terminal 3I-3.
5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3G-1 - 3I-31	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ]

Result:

NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [08/2019 - ]
