Components [07/2015 - ]

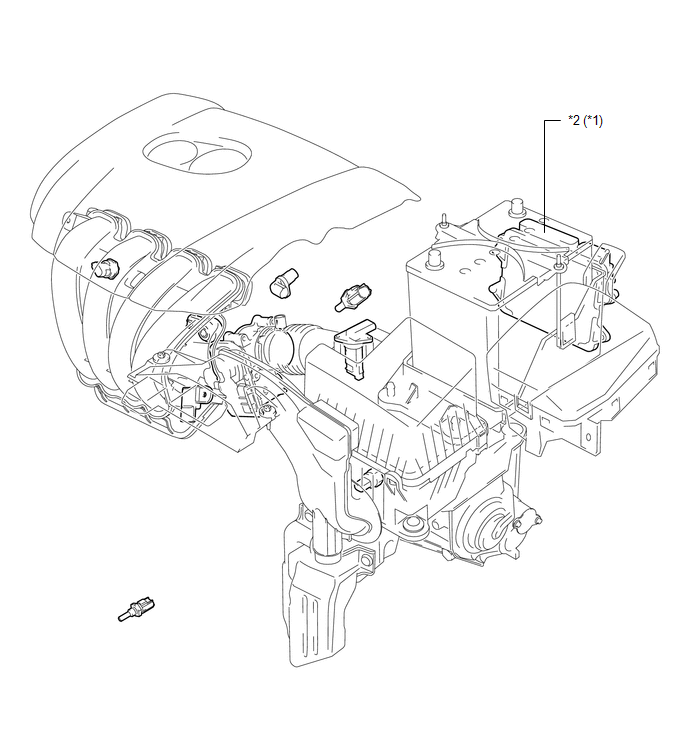

Fig 1: ECM Replacement Components
GTY485481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BAROMETRIC PRESSURE (BARO) SENSOR *2 PCM
