Components [08/2018 - ]

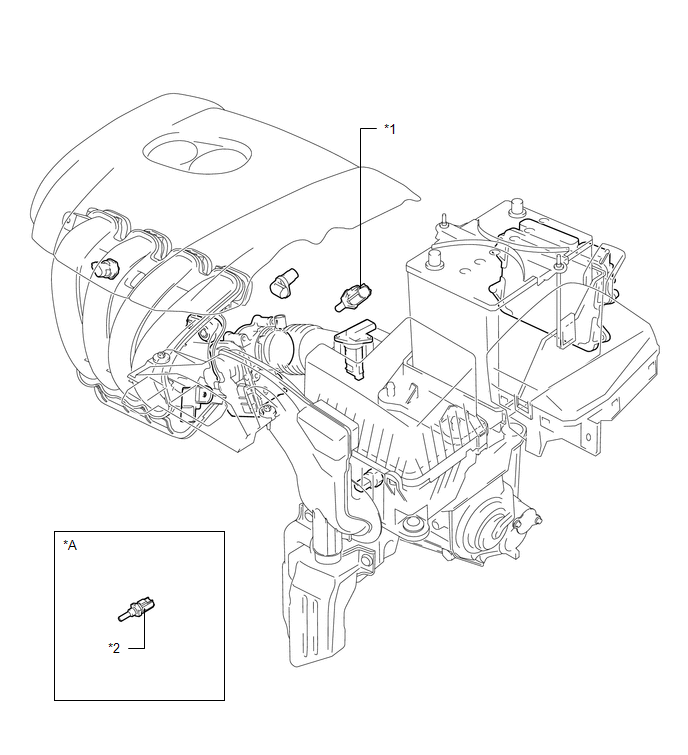

Fig 1: Engine Coolant Temperature Sensor Replacement Components [08/2018 - ]
GTY942559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ ECT Sensor No. 2 - -
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 ENGINE COOLANT TEMPERATURE SENSOR NO. 2
