DTC P2107-00: Throttle Actuator "A" Control Module Processor [08/2018 - ]: Wiring Diagram

200 Pin Type

GTY487264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

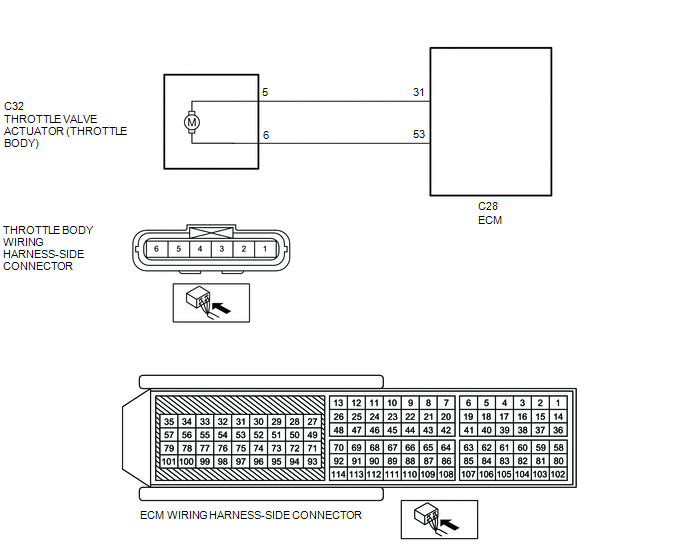

186 Pin Type

GTY867600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
