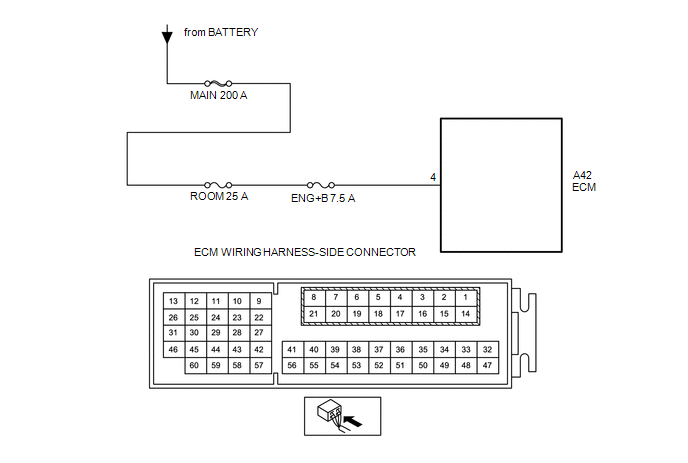

DTC P2507-00: ECM / PCM Power Input Signal Low [07/2015 - 08/2018]: Wiring Diagram

GTY733103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
