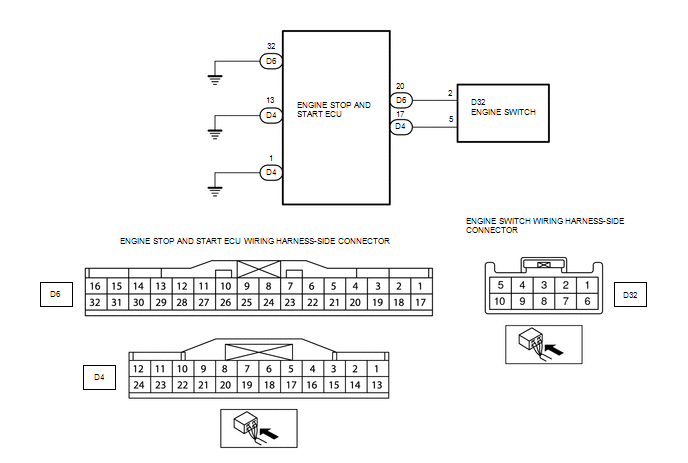

Push Button Start System Does Not Operate [07/2015 - ]: Wiring Diagram

GTY484881

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
