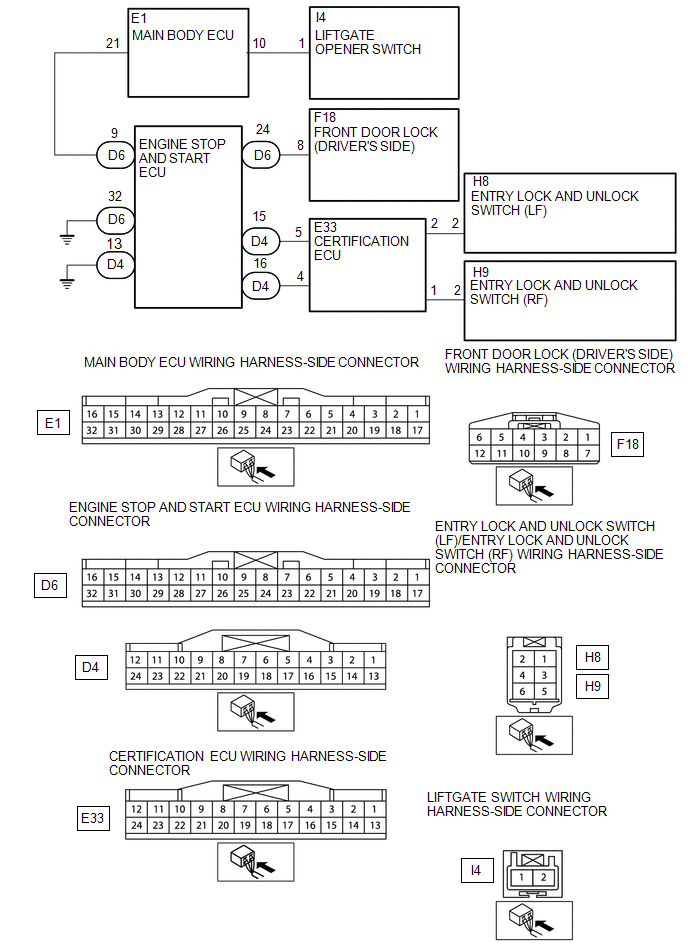

Advanced Keyless Entry System Does Not Operate [08/2019 - ]: Wiring Diagram

GTY907326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
