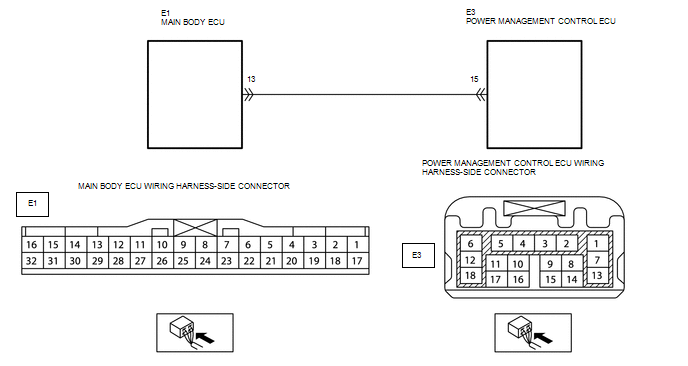

DTC U0322-09: Software Incompatibility with Body Control Module Component Failures [07/2015 - ]: Wiring Diagram

GTY493968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
