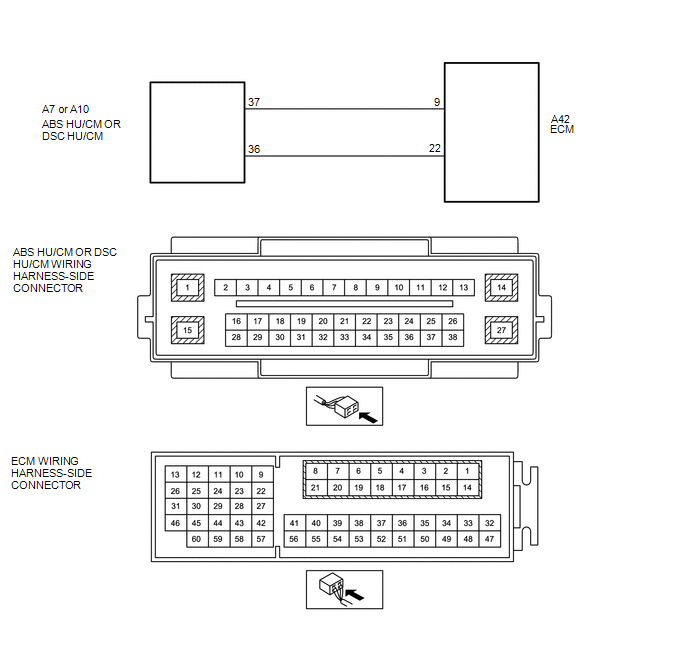

DTC U0315-00: Software Incompatibility with Anti-Lock Brake System Control Module [07/2015 - 08/2018]: Wiring Diagram

GTY492700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
