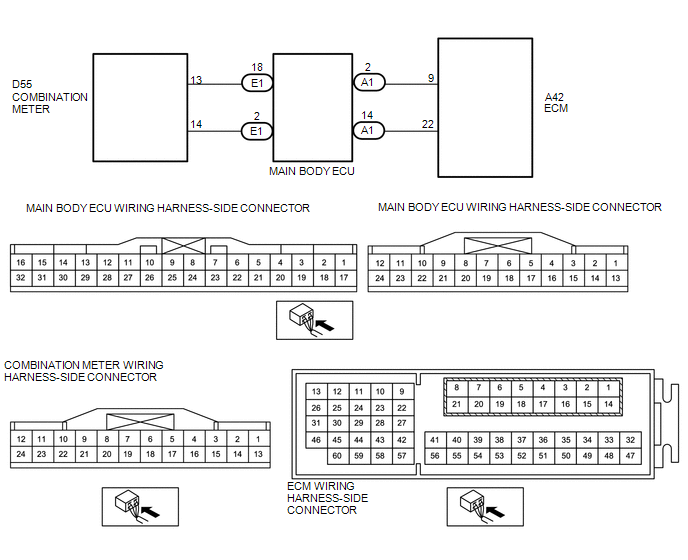

DTC U0323-00: Software Incompatibility with Instrument Panel Control Module [07/2015 - 08/2018]: Wiring Diagram

GTY485434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
