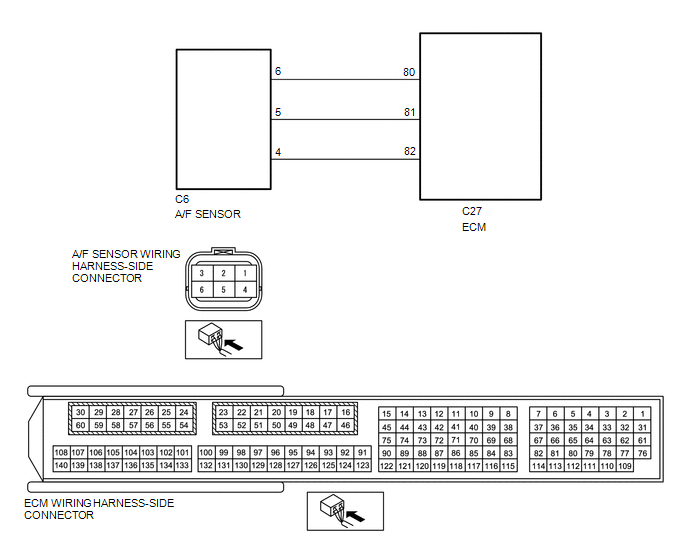

DTC P0130-00: O2 Sensor Circuit (Bank 1 Sensor 1) [07/2015 - 08/2018]: Wiring Diagram

GTY483452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
