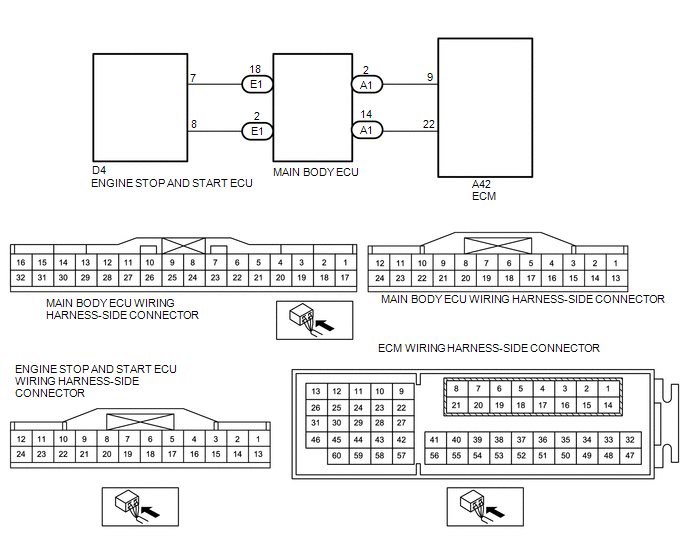

DTC P061F-00: Internal Control Module Throttle Actuator Controller Performance [07/2015 - 08/2018]: Wiring Diagram

GTY489779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
