DTC U0302-00: Software Incompatibility with Transmission Control Module [08/2018 - ]: Wiring Diagram

200 Pin Type

GTY489368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

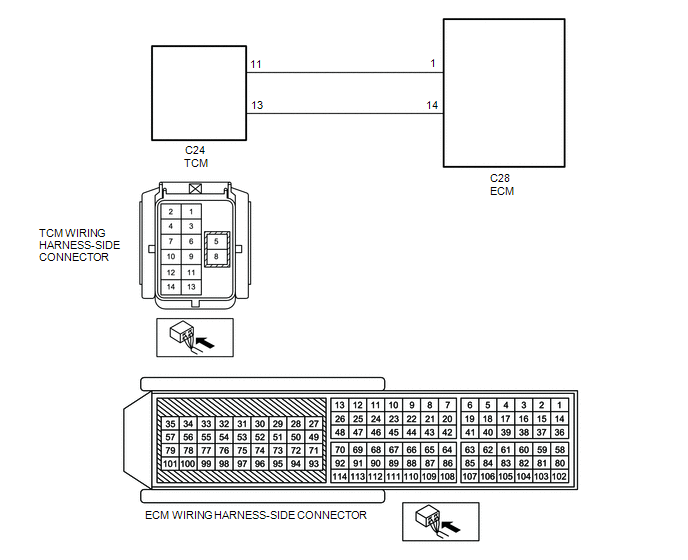

186 Pin Type

GTY941661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
