DTC U0323-00: Software Incompatibility with Instrument Panel Control Module [08/2018 - ]: Wiring Diagram

200 Pin Type

GTY485434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

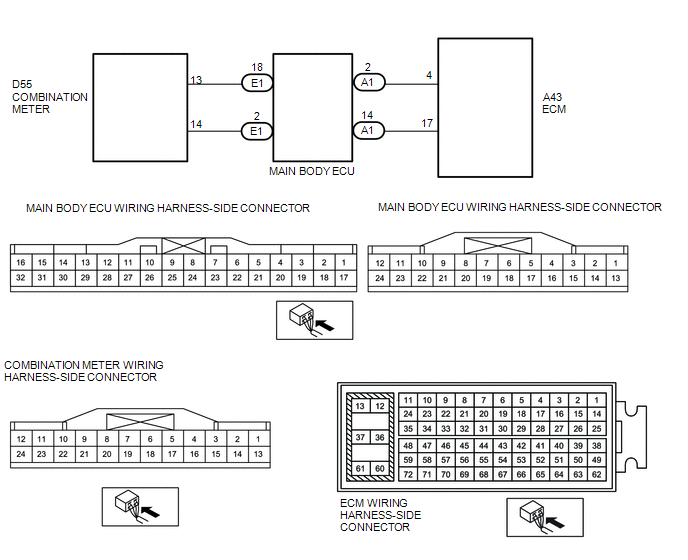

186 Pin Type

GTY917529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
