Customize Parameters [07/2015 - 08/2019]

Turn Light System
- There are two methods for personalizing the turn light system: One using the Techstream and the other using the multi-display (with multi-display). Refer to the following and perform the setting.
  Using Techstream
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
  Using multi-display
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
Coming Home Light System
- There are two methods for personalizing the coming home light system: One using the Techstream and the other using the multi-display (with multi-display). Refer to the following and perform the setting.
  Using Techstream
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
  Using multi-display
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
Leaving Home Light System
- There are three methods for personalizing the leaving home light system: Using the Techstream, using the multi-display (with multi-display), and using the headlight dimmer switch.
  Using Techstream
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
  Using multi-display
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
  Using dimmer switch
  1. Switch the ignition off.
    NOTE:
    Perform the procedure in Steps 2-4 within 10 s.
  2. Operate the dimmer switch to the passing position and wait for 3 s or more.
  3. Operate the dimmer switch back to the LO position.
  4. Operate the dimmer switch to the passing position and wait for 3 s.
  5. Verify that the headlight high-beam indicator light flashes two times.

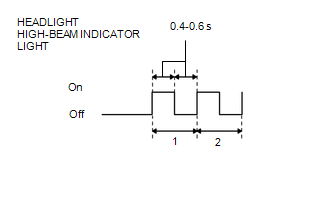

    Fig 1: Headlight High-Beam Indicator Light Flashing Pattern
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    - If the headlight high-beam indicator light does not flash two times, the procedure may have been performed incorrectly. Repeat the procedure from Step 2.
Room Light Control System
- There are two methods for personalizing the room light control system: One using the Techstream and the other using the multi-display (with multi-display). Refer to the following and perform the setting.
  Using Techstream
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
  Using multi-display
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]

DRL System (With DRL System)

Function	Initial setting	Setting contents	Control module
The DRL system function can be set.	On (DRL illumination)	Off (DRL non-illumination/On (DRL illumination)	Main body ECU

Perform the following procedure to change the running light illumination/non-illumination setting.
HINT:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
- Depending on the vehicle specification, the running lights on some vehicles cannot be turned off.

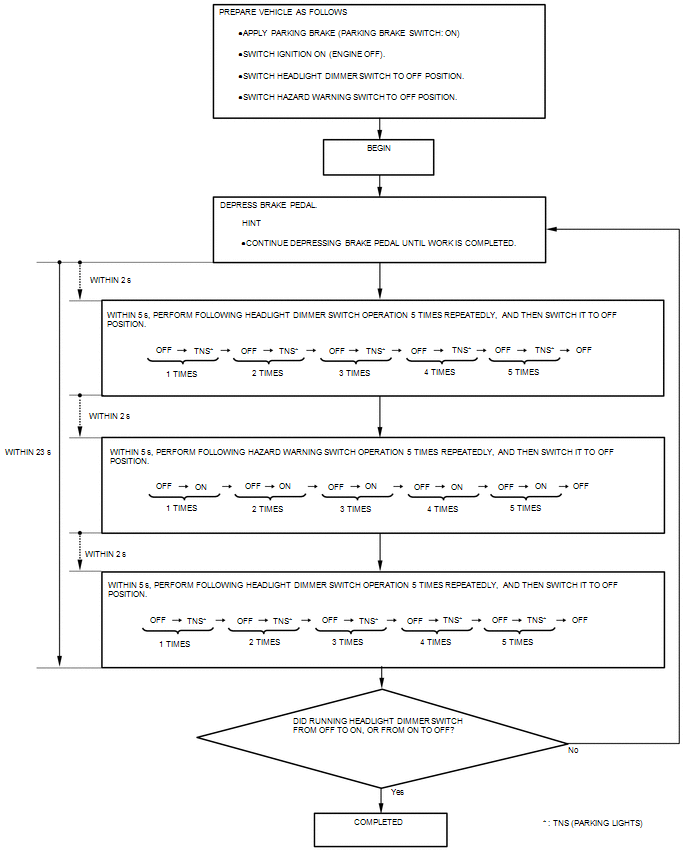

Fig 2: Running Light Illumination/Non-Illumination Setting Procedure Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Auto Light-off System
- There are two methods for personalizing the turn light system: One using the Techstream and the other using the multi-display (with multi-display). Refer to the following and perform the setting.
  Using Techstream
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
  Using multi-display
  - Refer to CUSTOMIZE PARAMETERS [07/2015 - 08/2019]
