System Diagram [08/2015 - 08/2019]

  1. DOOR BUS LINES

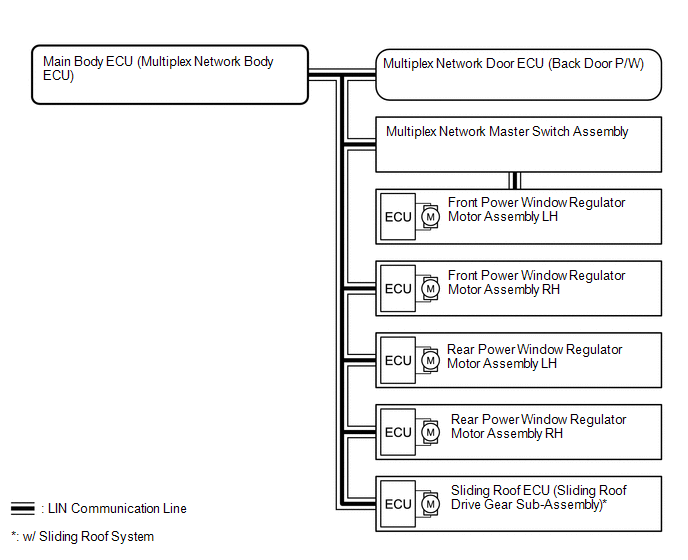

    Fig 1: Door Bus Lines System Diagram [08/2015 - 08/2019]
    GTY731396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES (w/ Smart Key System)

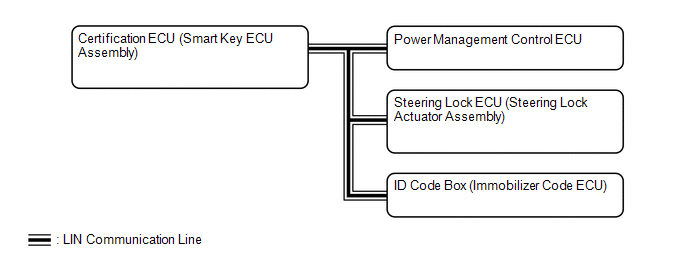

    Fig 2: Certification Bus Lines (W/ Smart Key) System Diagram [08/2015 - 08/2019]
    GTY726526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR CONDITIONING BUS LINES

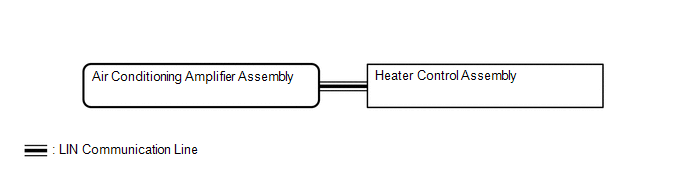

    Fig 3: Air Conditioning Bus Lines System Diagram [08/2015 - 08/2019]
    GTY736058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. SUB-LIN BUS LINES

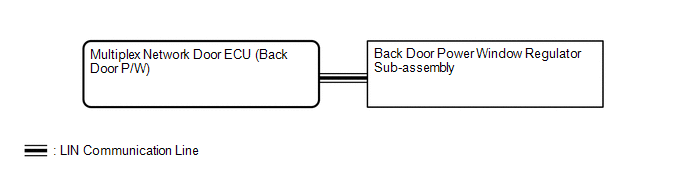

    Fig 4: Sub-LIN Bus Lines System Diagram [08/2015 - 08/2019]
    GTY731294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DRIVE MONITOR SWITCH BUS LINES (w/ CRAWL Control)

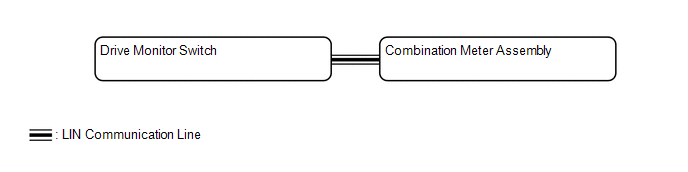

    Fig 5: Drive Monitor Switch Bus Lines (W/ CRAWL Control) System Diagram [08/2015 - 08/2019]
    GTY714788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
