Inspection [08/2015 - ]: Procedure

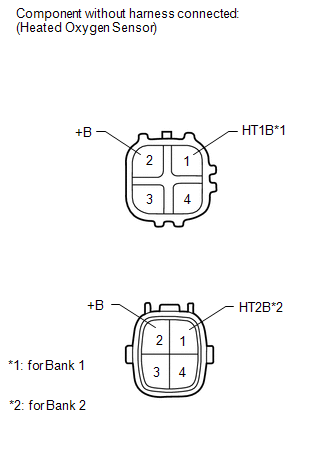

- INSPECT HEATED OXYGEN SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
1 (HT1B) - 2 (+B)
(for Bank 1) |
20°C (68°F) |
11 to 16 Ω |
1 (HT2B) - 2 (+B)
(for Bank 2) |
If the result is not as specified, replace the heated oxygen sensor.
