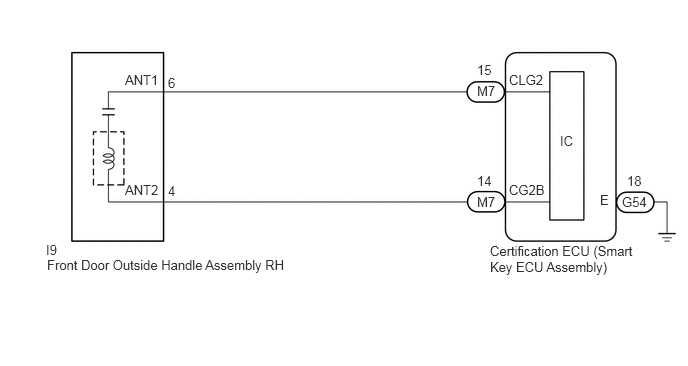

Front Passenger Side Door Entry Lock Function does not Operate [11/2018 - ]: Wiring Diagram

GTY850978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
