System Diagram [02/2019 - ]

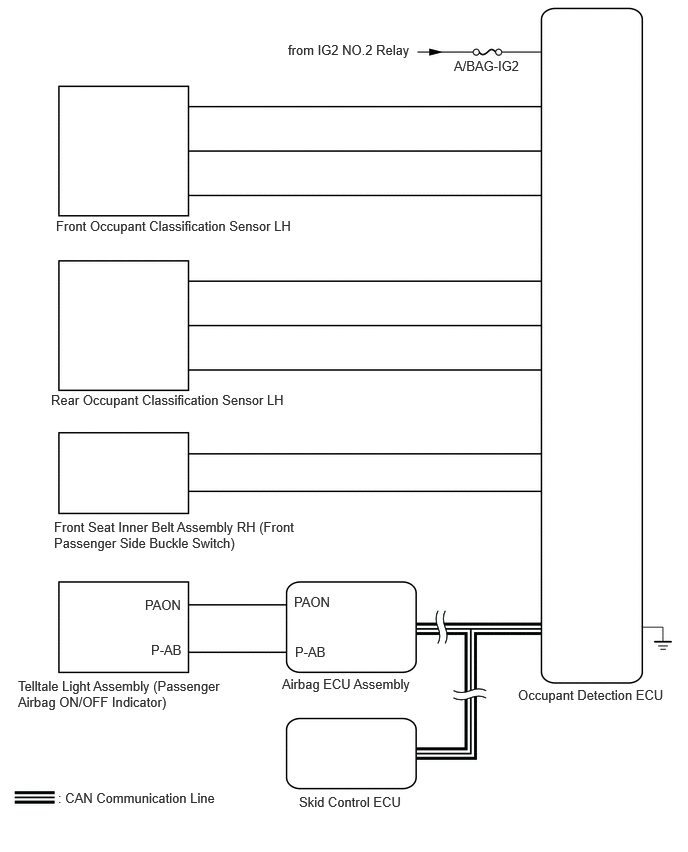

Fig 1: Occupant Classification System Diagram
GTY1114421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Airbag ECU Assembly Occupant Detection ECU
  • Crash detection signal
  • Acceleration signal
  • Yaw rate signal
 CAN
Skid Control ECU Occupant Detection ECU Vehicle speed signal
Occupant Detection ECU Airbag ECU Assembly
  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for front passenger signal
  • Buckle switch state of front passenger signal
