System Diagram [08/2015 - 08/2017]

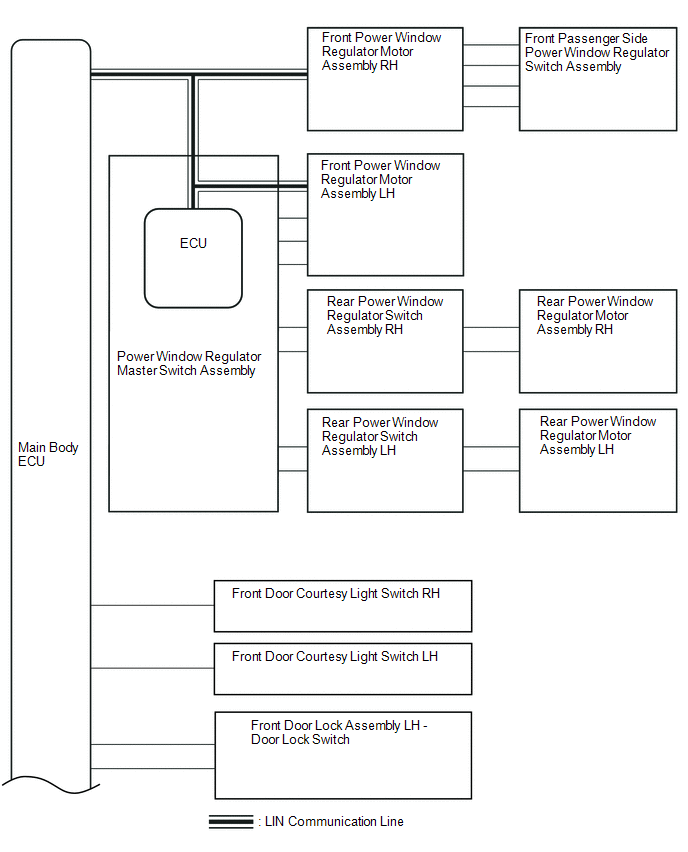

GTY240657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

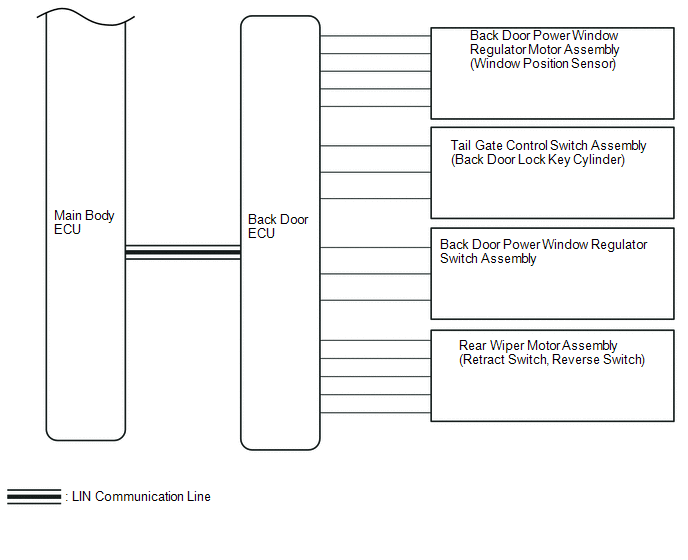

GTY240658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Line Signal
Power window regulator master switch assembly
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
 LIN Power window UP/DOWN signal
Main Body ECU
  • Power window regulator master switch assembly
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
 LIN
  • Key-linked power window UP/DOWN signal
  • Key-OFF operation permission signal
Main Body ECU Back door ECU LIN Key-OFF operation permission signal
Back door ECU Main Body ECU LIN Status of the power window position
