System Diagram [08/2015 - 08/2017]

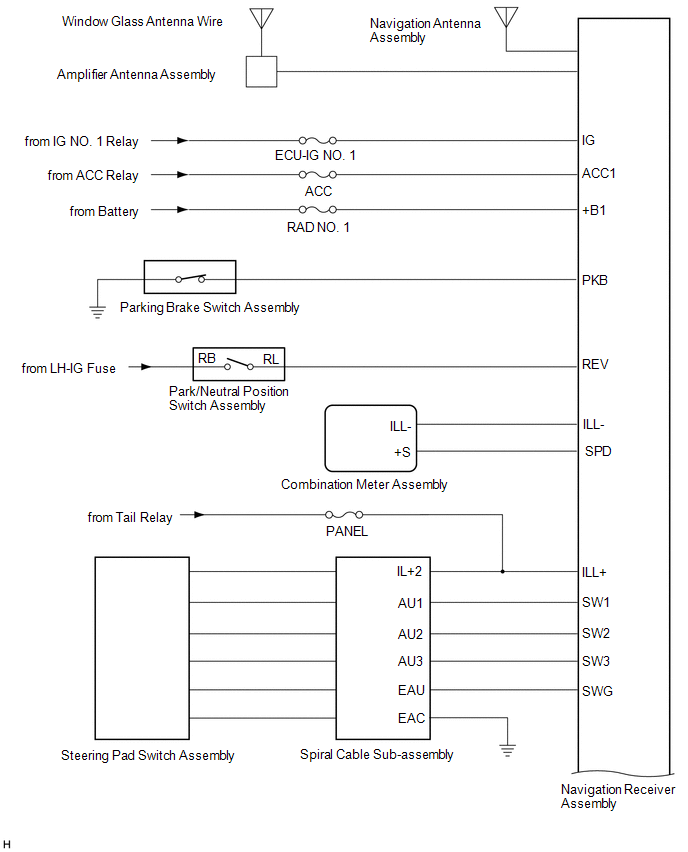

GTY571364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

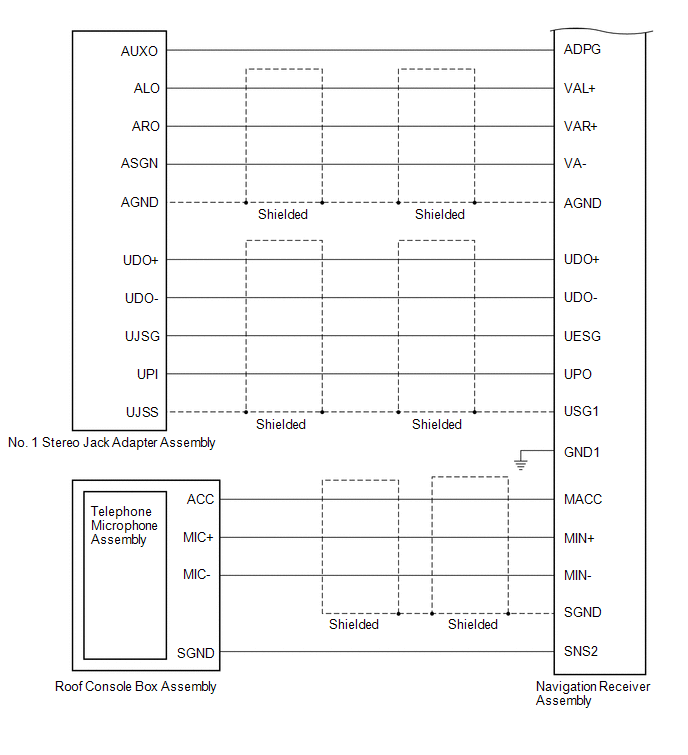

GTY557389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

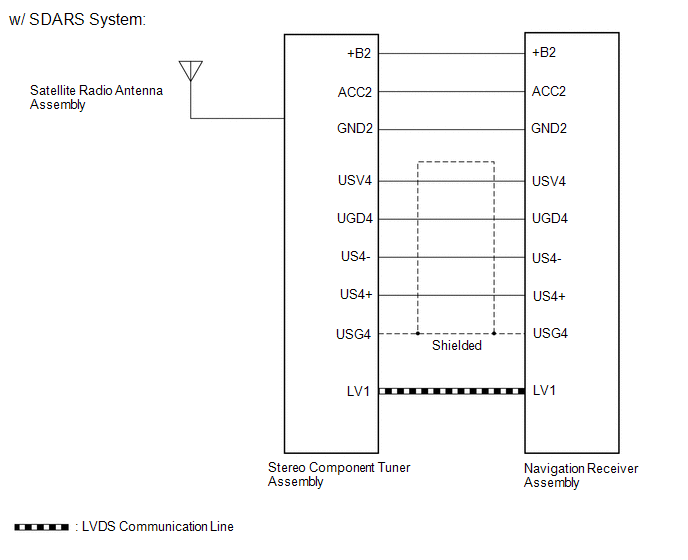

GTY596658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

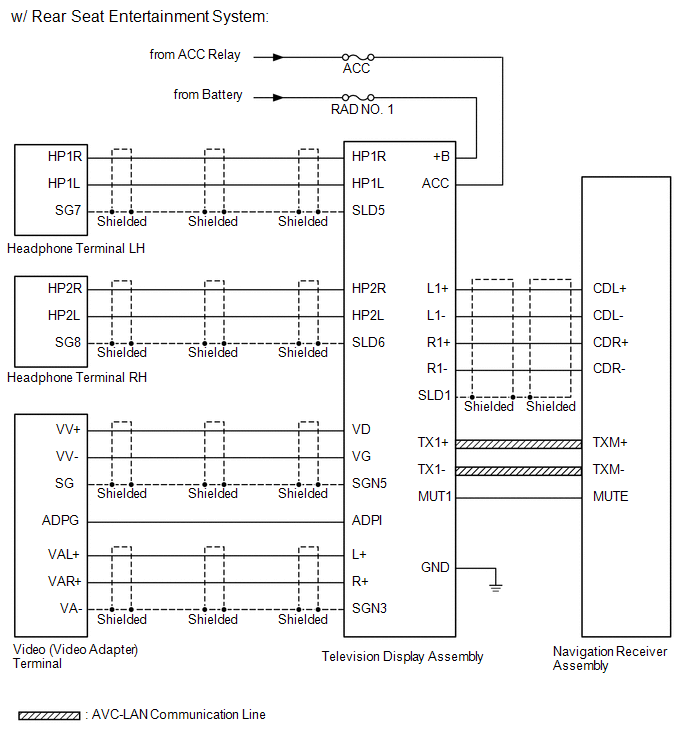

GTY440676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

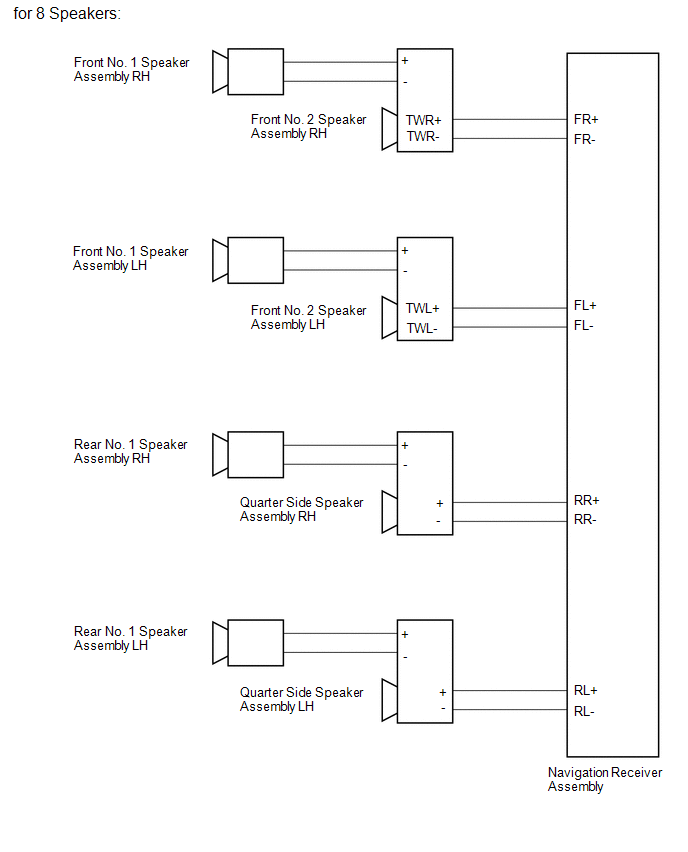

GTY594037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

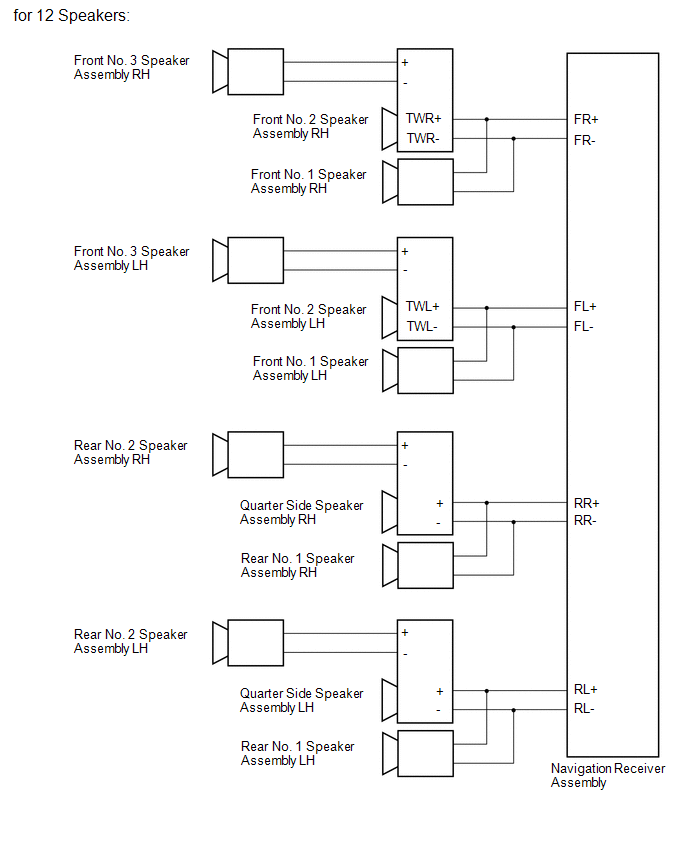

GTY541055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

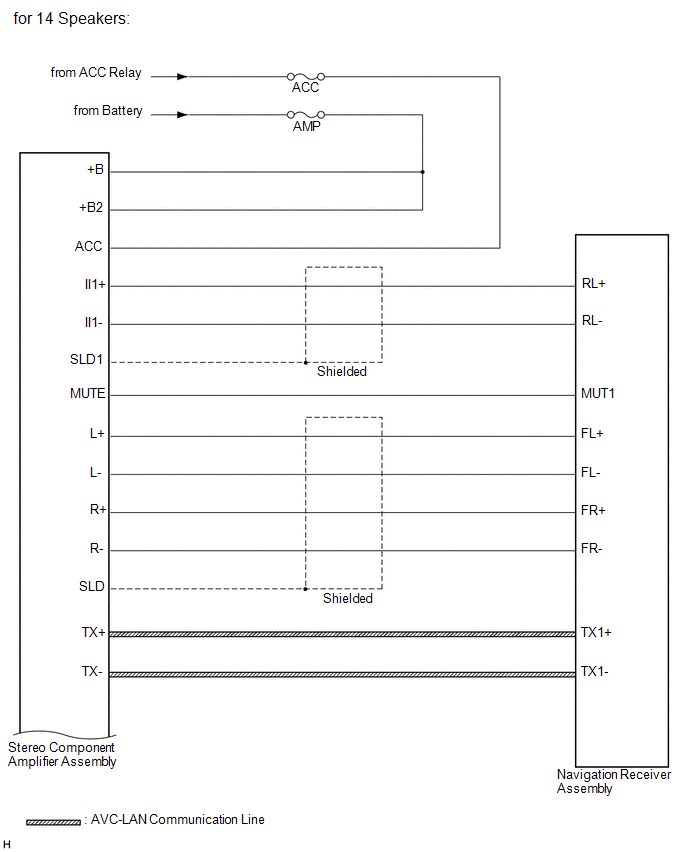

GTY436675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

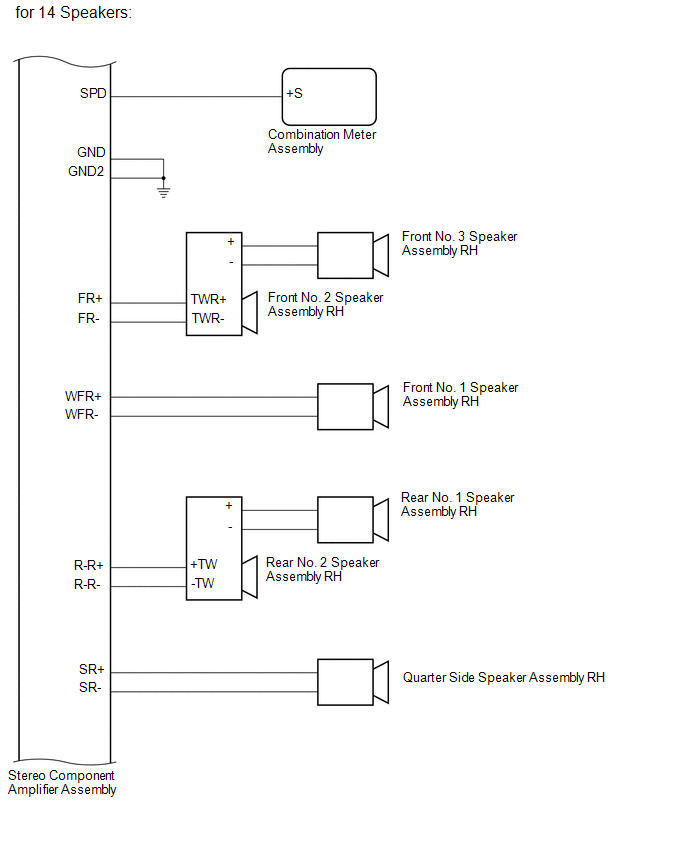

GTY447046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

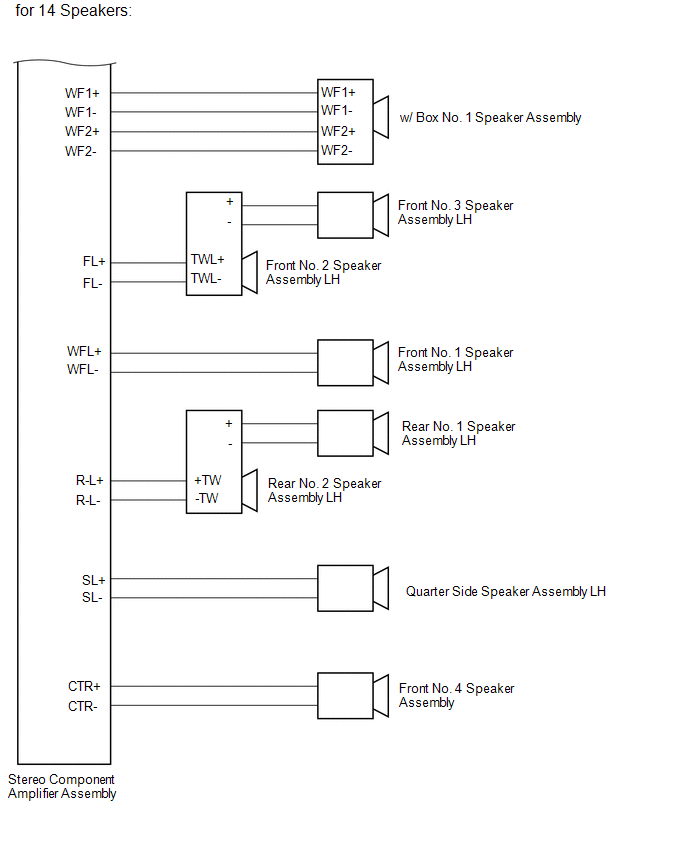

GTY554819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
