Components [03/2019 - ]

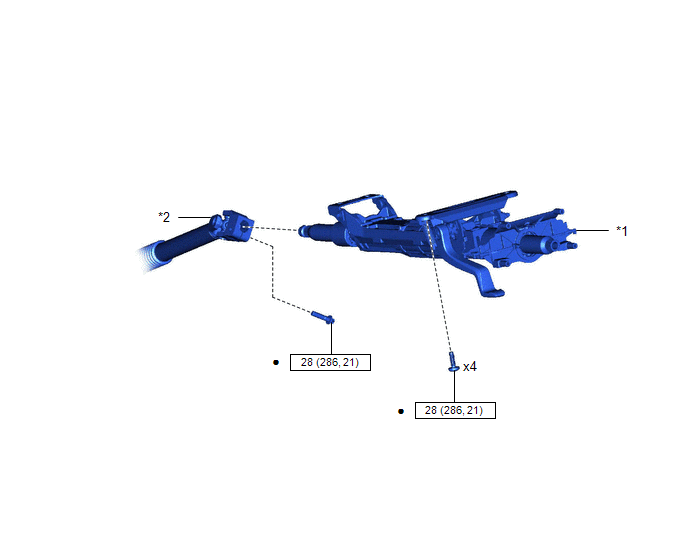

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
STEERING COLUMN ASSEMBLY
*2
STEERING INTERMEDIATE SHAFT ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
