Installation [03/2019 - ]: Procedure

1. Clean the bore hole for the front skid control sensor wire.
2. Coat the bore hole for the front skid control sensor wire with NBU 12K Lubricating Grease.
3. Install front skid control sensor wire.
4. Replace the E11 bolt.
5. Position and tighten the E11 bolt.

   Torque: 11.8 N*m (120 kgf*cm, 9 ft.*lbf)

6. Attach the cable of the front skid control sensor wire in the bracket.

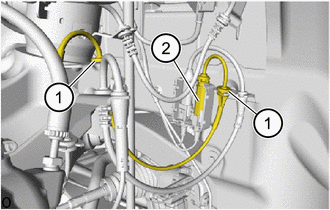

7. Connect the cable of the front skid control sensor wire in the brackets (1).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Connect connectors and lock (2).
9. Close the connection box.

Refer to REMOVAL [03/2019 - ]
