Components [03/2019 - ]

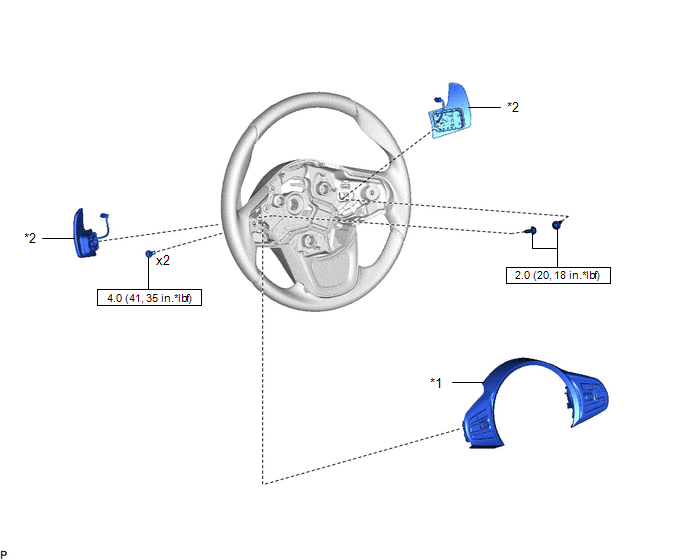

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications
GTY884878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STEERING PAD SWITCH ASSEMBLY *2 TRANSMISSION SHIFT SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
