Customize Parameters [08/2015 - 08/2019]

HINT:

The following items can be customized.

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Customize Setting.
5. Select the setting by referring to the table below.
   LIGHT CONTROL



   Display	Default	Content	Setting
   Disp Ex OFF Sen	NORMAL	Changes brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock light.*1	LIGHT2, LIGHT1, NORMAL, DARK1 or DARK2
   Disp Ex ON Sen	NORMAL	canceling lowering lights such as the combination meter indicator light, A/C indicator light, and clock light.*2	LIGHT2, LIGHT1, NORMAL, DARK1 or DARK2
   Light Auto OFF Delay	30s	Function to continue illuminating the headlights for a certain period of time after closing all the doors with the ignition switch turned from ON to off under the condition that the headlight dimmer switch is at head or AUTO with the headlight on.	OFF, 30s, 60s or 90s
   Sensitivity	Normal	A function to adjust the ambient light sensitivity of the automatic light control system.*3	Light2, Light1, Normal, Dark1 or Dark2
   DRL Function	ON	A function that enables or disables the DRL.	ON or OFF

   HINT:

   The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

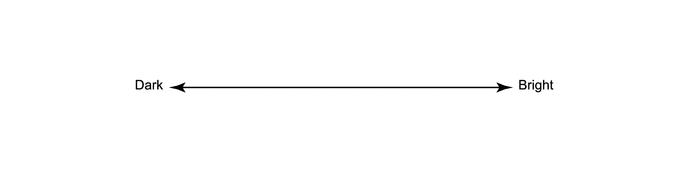

   *1



   Brightness of lowering the lights	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

   *2



   Brightness when canceling the lowering of the lights	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

   *3



   Lighting brightness	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Setting	Dark2	Dark1	Normal	Light1	Light2
