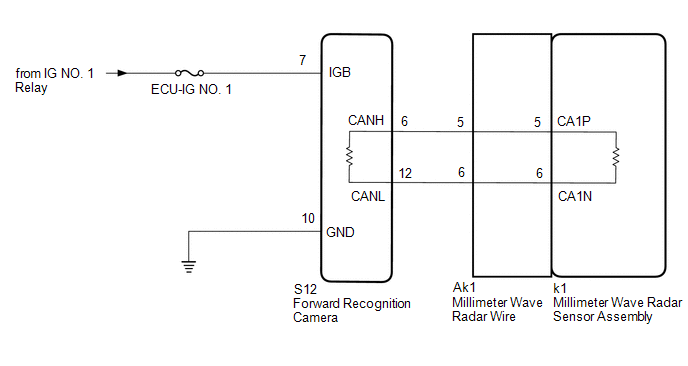

DTC U023A: Lost Communication With Image Processing Module "A" [08/2019 - 08/2021]: Wiring Diagram

GTY889851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
