Power Window Control System - Diagnostics - Introduction
>>
Power Window Control System
>>
System Diagram [08/2019 - 08/2022]
>>
System Diagram [08/2019 - 08/2022]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2019 - 08/2022]

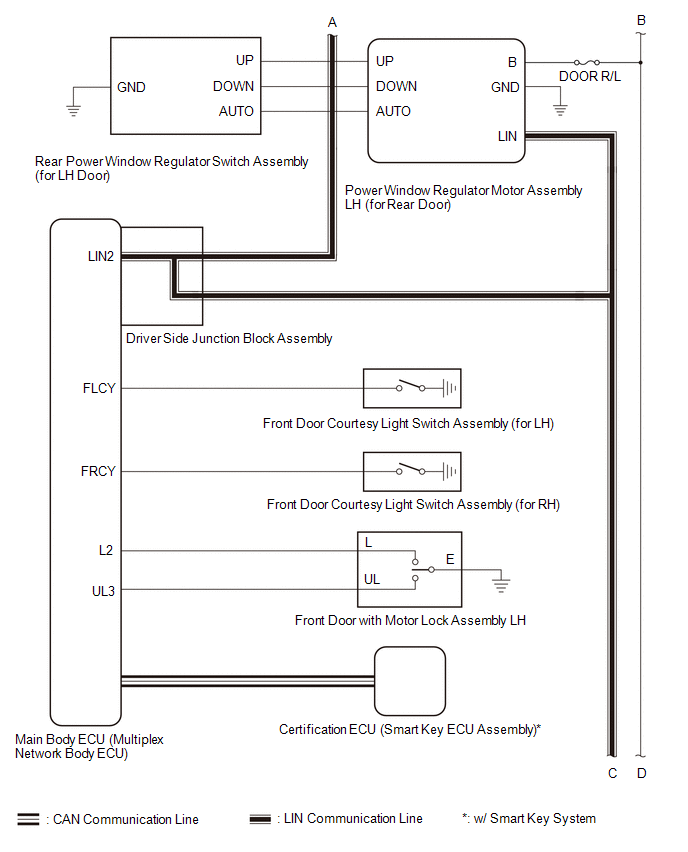

Fig 1: Power Window Control System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

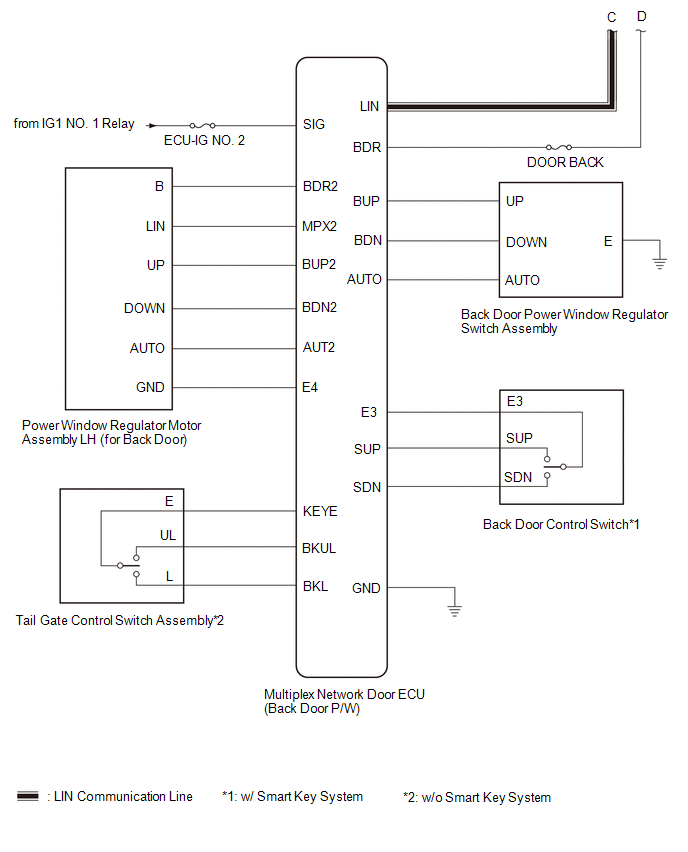

Fig 2: Power Window Control System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

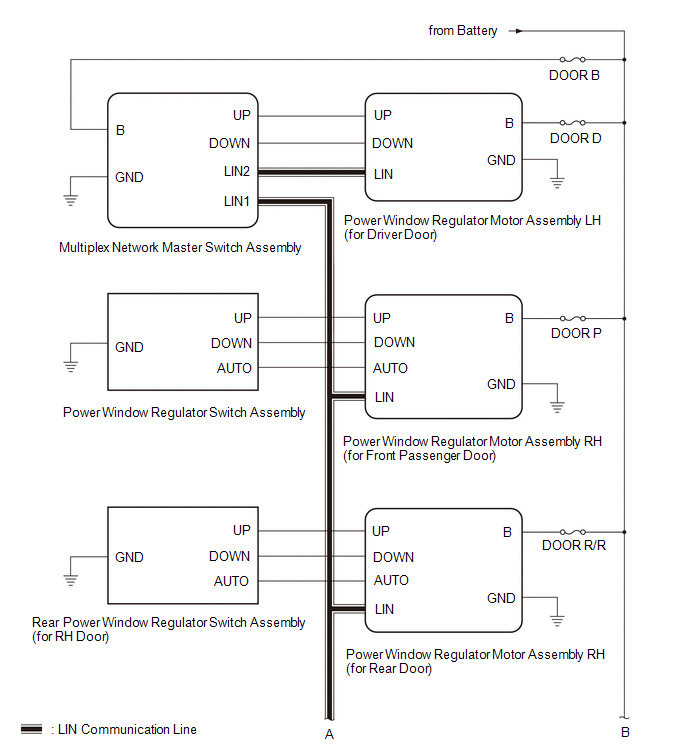

Fig 3: Power Window Control System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
