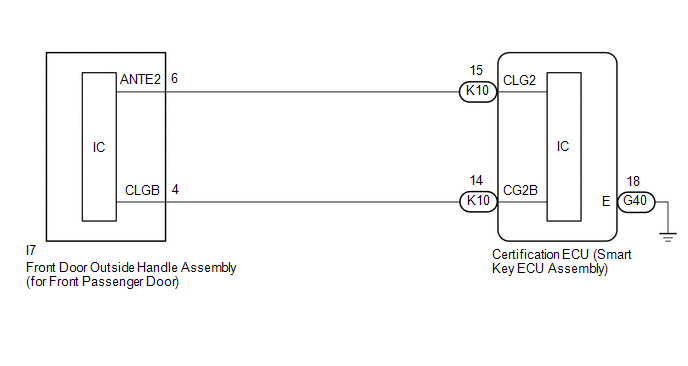

Front Passenger Side Door Entry Lock Function does not Operate [04/2018 - ]: Wiring Diagram

GTY888956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
