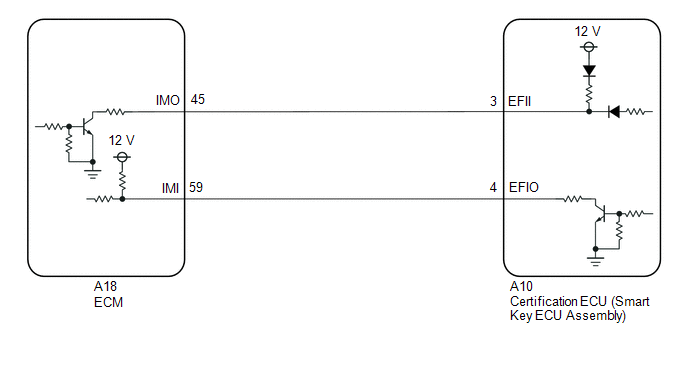

DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [04/2018 - 08/2020]: Wiring Diagram

GTY895380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
