Back Door Entry Lock Function does not Operate [02/2017 - ]: Wiring Diagram

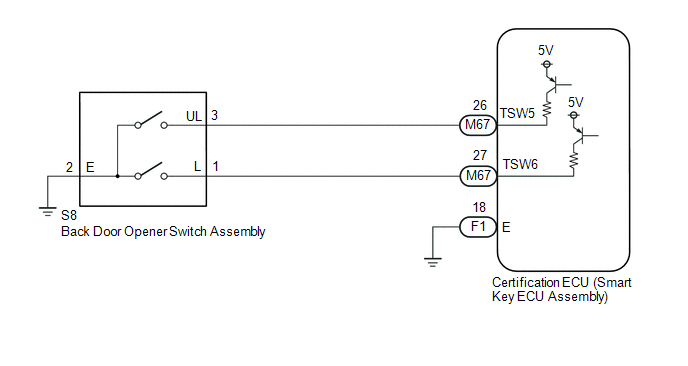

Fig 1: Back Door Entry Lock Function Circuit Diagram
GTY772487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
