DTC B2452: Height Control Sensor Data Out of Range When Initializing [09/2019 - ]: Wiring Diagram

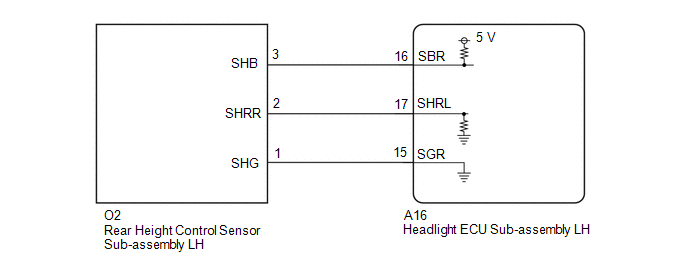

Fig 1: Height Control Sensor Data Out Of Range Initializing Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
