Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [02/2017 - ]: Wiring Diagram

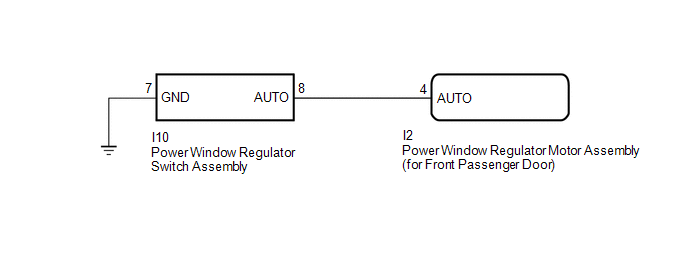

Fig 1: Front Passenger Side Power Window Auto Up/Down Function With Front Passenger Side Power Window Switch Circuit Diagram
GTY769948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
