Power Window Control System - Diagnostics Codes & Symptom Tests
>>
Power Window Control System
>>
Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH [02/2017 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH [02/2017 - ]: Wiring Diagram

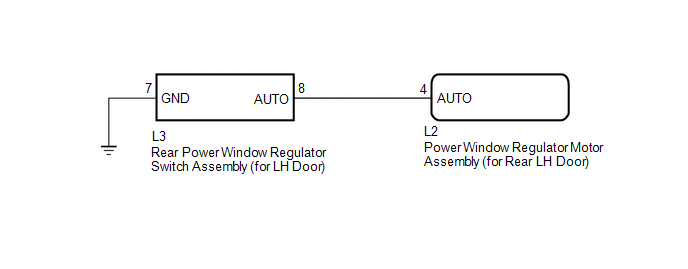

Fig 1: Rear Power Window LH Auto Up/Down Function With Rear Power Window Switch LH Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
