ECM Power Source Circuit [02/2017 - ]: Wiring Diagram

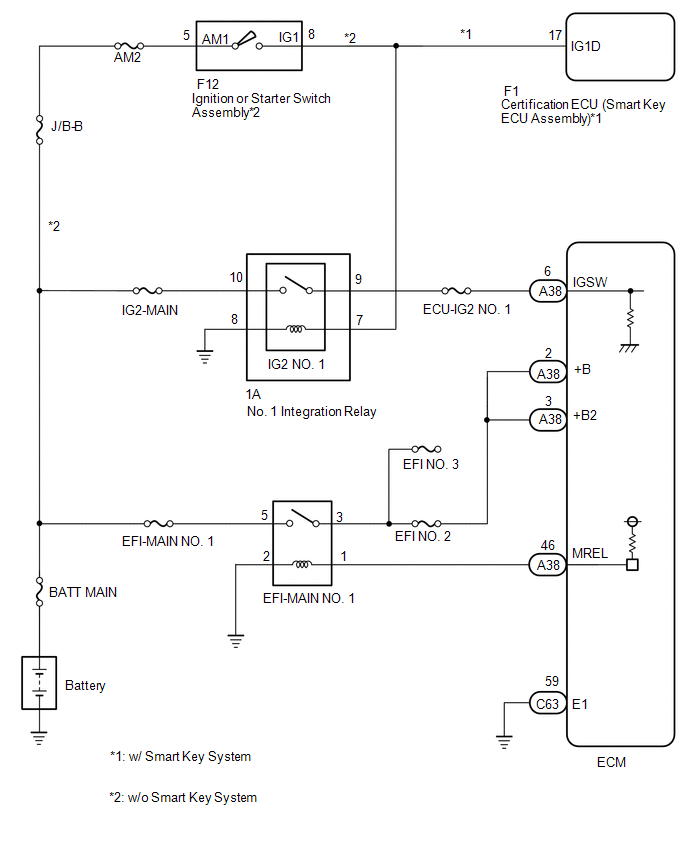

Fig 1: ECM Power Source Circuit Diagram
GTY1041011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
