VC Output Circuit [02/2017 - ]: Wiring Diagram
ECM Power Source Circuit
Refer to
ECM Power Source Circuit [02/2017 - ]
VC Output Circuit

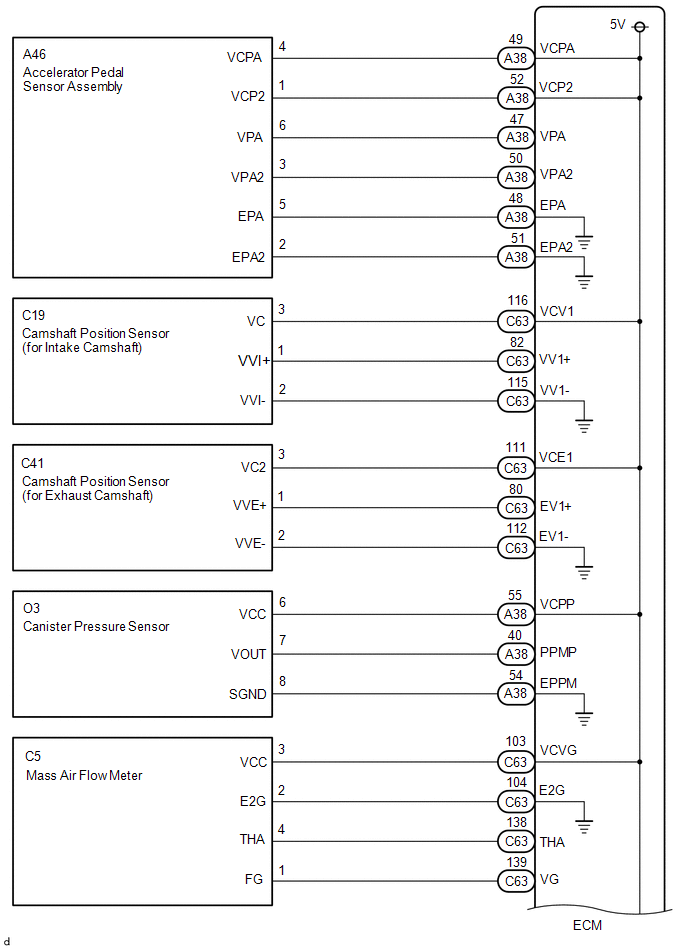

Fig 1: VC Output Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

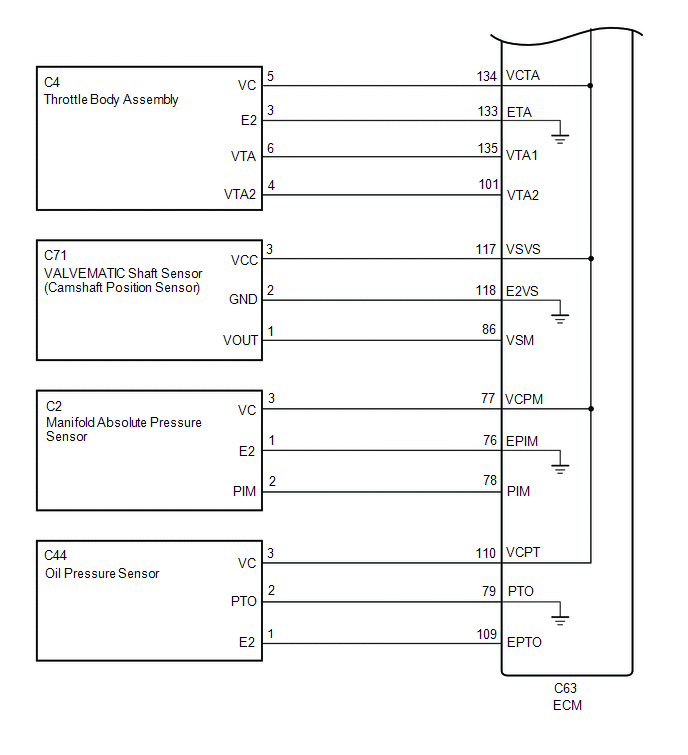

Fig 2: VC Output Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
