DTC P0115: Engine Coolant Temperature Circuit; DTC P0117: Engine Coolant Temperature Circuit Low Input; DTC P0118: Engine Coolant Temperature Circuit High Input [10/2017 - 12/2021]: Wiring Diagram

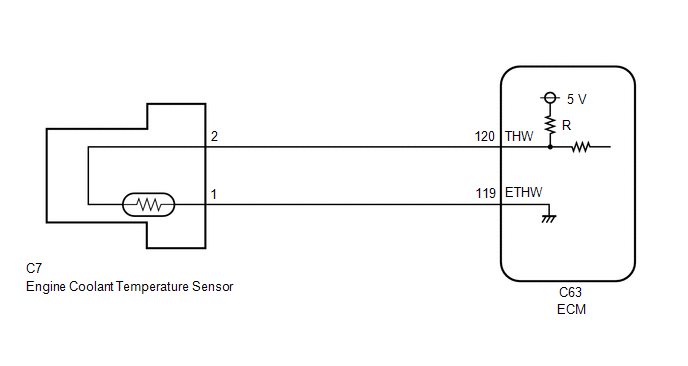

Fig 1: Engine Coolant Temperature Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
