DTC P0365: Camshaft Position Sensor "B" Circuit (Bank 1); DTC P0367: Camshaft Position Sensor "B" Circuit Low Input (Bank 1); DTC P0368: Camshaft Position Sensor "B" Circuit High Input (Bank 1) [10/2017 - 12/2021]: Wiring Diagram

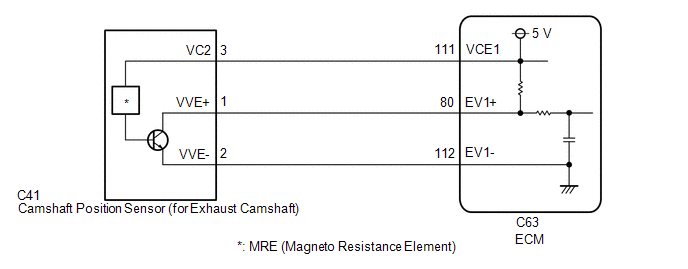

Fig 1: Camshaft Position Sensor B (Bank 1) Circuit Diagram
GTY769596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
