Engine Control System (W/O Canister Pump) - Diagnostic Codes (P2610-U0129) & Circuit / Symptom Tests
>>
SFI SYSTEM (w/o Canister Pump Module)
>>
DTC U011B: Lost Communication with Rocker Arm Control Module "A" [10/2017 - 12/2021]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U011B: Lost Communication with Rocker Arm Control Module "A" [10/2017 - 12/2021]: Wiring Diagram

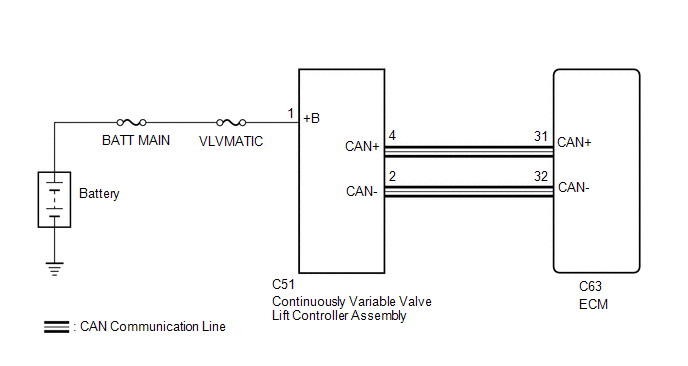

Fig 1: Lost Communication With Rocker Arm Control Module A Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
