DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [02/2017 - ]: Wiring Diagram

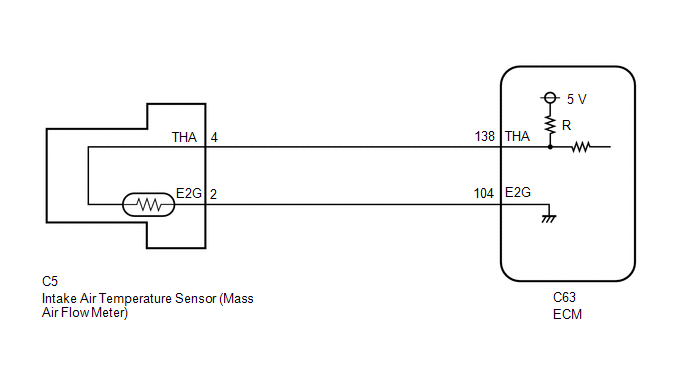

Fig 1: Intake Air Temperature Low Input Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
