DTC B1900: Short in Front P/T Squib RH Circuit; DTC B1901: Open in Front P/T Squib RH Circuit; DTC B1902: Short in Front P/T Squib RH Circuit (To Ground); DTC B1903: Short in Front P/T Squib RH Circuit (To B+) [09/2019 - ]: Wiring Diagram

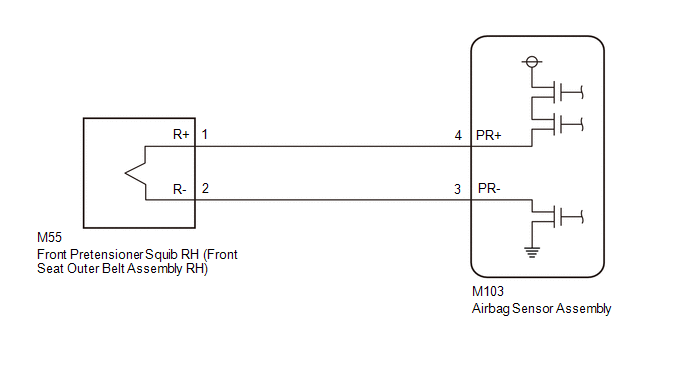

Fig 1: Short In Front P/T Squib RH Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
