System Diagram [02/2017 - 10/2017]

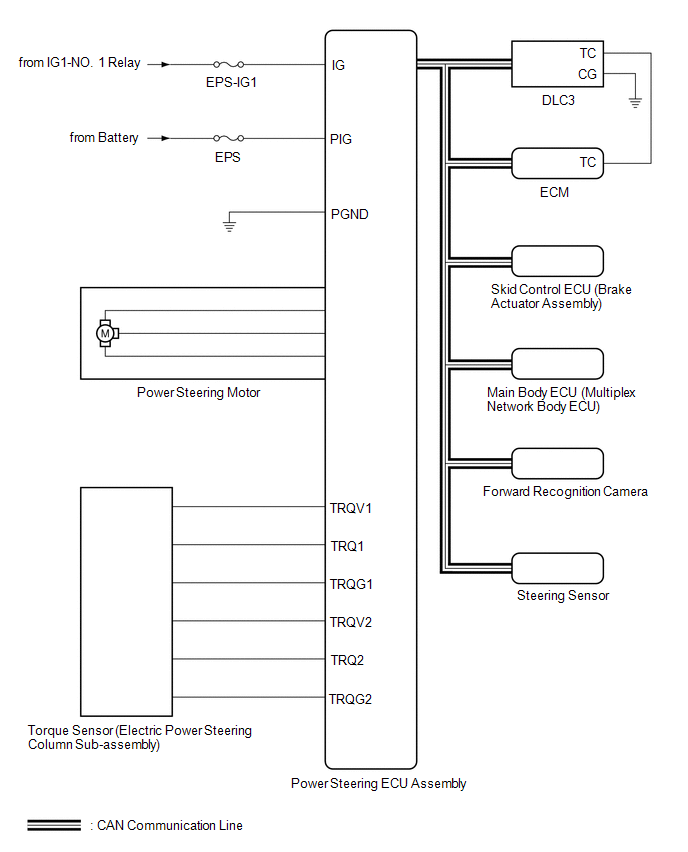

Fig 1: Power Steering System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
