Installation [02/2017 - ]: Procedure

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.

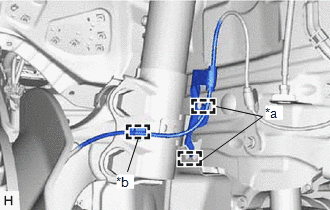

2. Engage the clamp to the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hook
   *b	Clamp

   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

3. Engage the 2 hooks of front speed sensor clamp to the front shock absorber assembly.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

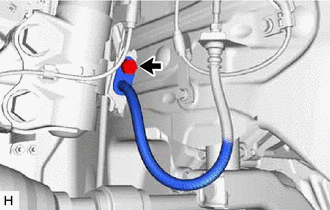

4. Install the front flexible hose to the front shock absorber assembly with the bolt.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Install the 2 front speed sensor clamps with the 2 bolts.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

6. Engage the clamp to the vehicle body.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

7. Engage the clamp to the vehicle body.
   NOTE:

   Do not twist the front speed sensor wire harness when installing it.

8. Connect the connector.
9. Return the front fender liner to its original position.

1. Install the front fender liner with the 3 clips.
2. Install the 4 screws.

Refer to INSTALLATION [02/2017 - ]

Refer to INSTALLATION [02/2017 - 05/2018] , or refer to INSTALLATION [05/2018 - ]

Refer to TEST MODE PROCEDURE [02/2017 - 10/2017] , or refer to TEST MODE PROCEDURE [10/2017 - 12/2021] , or refer to TEST MODE PROCEDURE [12/2021 - ]
