Installation [02/2017 - ]: Procedure

1. Align the pins and guides, and engage the claws to install the steering sensor to the spiral cable sub-assembly.

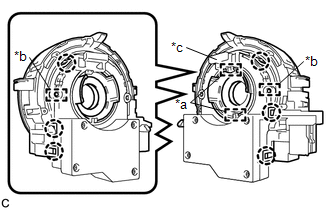

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Guide
   *b	Pin
   *c	Lock Pin

   NOTE:

   • Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
   • Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.
   • The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.
2. Remove the lock pin from the steering sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [02/2017 - 10/2017] , or refer to INSTALLATION [10/2017 - ]
