Removal [02/2017 - 08/2020]: Procedure

Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 08/2020]

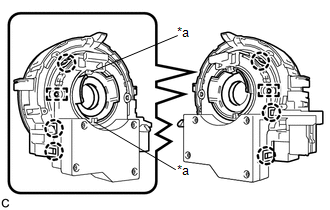

1. Disengage the claws and pins, and remove the spiral cable sub-assembly from the steering sensor.
   NOTE:

   Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Guide
